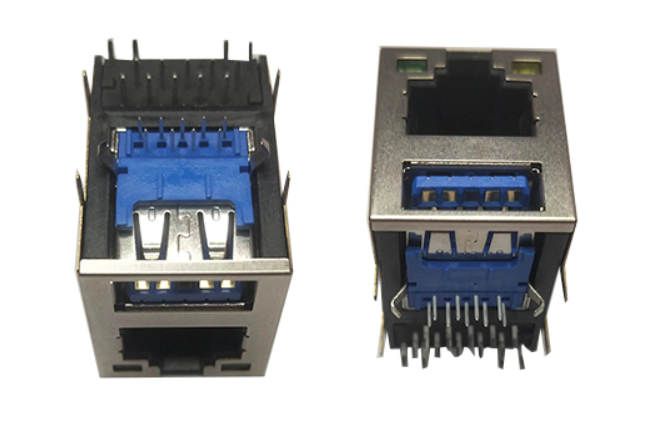

• RJ45-USB

RJ45-USB

  • 488
Product Review | Top Rated

ELECTRICAL SPECIFICATIONS @25℃ 1. OCL: 180uH Min @ 100KHz, 0.1V . 2. Leakage Inductance: 0.5uH Max @ 100KHz, 0.1V 3. DCR: 1000mΩ Max 4. Turns Ratio: 1CT:1CT±5% 5. insertion Loss: -1.0 dB Max @ 1-100 MHz -2.0 dB Max @ 100-250 MHz 6. Return Loss: -16 dB Min @ 1≦f ≦40 MHz -16+10log(f/40) dB Min @ 40< f ≤250 MHz, where f is in MHz 7. Cross Talk: -30 dB Typ @ 1-250 MHz 8. Common Mode Rejection Ratio: -30 dB Typ @ 1-250 MHz9. I

    Additional Information

  • Color: Default Color
  • Size: Default Size
  • Origin: China
  • Usage: Default Usage
  • Type: Default Type
  • Efficiency: 99.9% Type

Description:

ELECTRICAL SPECIFICATIONS @25℃ 1. OCL: 180uH Min @ 100KHz, 0.1V
. 2. Leakage Inductance: 0.5uH Max @ 100KHz, 0.1V
3. DCR: 1000mΩ Max
4. Turns Ratio: 1CT:1CT±5%
5. insertion Loss: -1.0 dB Max @ 1-100 MHz -2.0 dB Max @ 100-250 MHz
6. Return Loss: -16 dB Min @ 1≦f ≦40 MHz -16+10log(f/40) dB Min @ 40< f ≤250 MHz, where f is in MHz
7. Cross Talk: -30 dB Typ @ 1-250 MHz
8. Common Mode Rejection Ratio: -30 dB Typ @ 1-250 MHz
9. Isolation Hipot: 2250VDC 1mA 60S
10. Operating temperature: -40℃ to +85℃ 11. Storage temperature -40℃ to +125℃ 12.RoHS compliant
